Concrete Floor Thickness Requirements for Car Hoist Setup

Crucial Considerations for Installing a Reliable Car Hoist in Your Garage

If you’re considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. A robust and stable foundation is not only critical for the effective operation of the hoist but also paramount for the safety of your vehicles and anyone using the equipment. Proper preparation and strict adherence to installation guidelines can greatly enhance both the performance and longevity of the hoist, ensuring a safe working environment.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist itself, significantly minimizing the risk of cracking or sinking over time. For more heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance and safety during operation.

Step-by-Step Guide to Determining the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor plays a pivotal role in the safe installation and operation of a car hoist. Several factors must be evaluated when assessing the appropriate depth of your slab to ensure it can adequately handle the loads it will be subjected to during use. Understanding these critical elements can prevent costly installation mistakes and enhance the overall safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists apply significant stress to the concrete floor beneath them. Therefore, it is crucial to fully comprehend the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can add considerable load to the floor structure.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it’s wise to factor in extra weight as a safety buffer, ensuring the structure can support unforeseen circumstances and loads, thereby enhancing safety during use.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan on lifting substantially heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation, thus avoiding any potential hazards.

Engaging with a structural engineer is highly recommended. They possess the expertise to provide tailored advice and assist you in calculating the precise thickness needed based on your unique circumstances and requirements, ensuring a safe and efficient installation.

Examining Various Types of Car Hoists and Their Concrete Thickness Needs

It’s vital to recognize that different types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage setup.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to accommodate the concentrated load effectively and ensure stability.

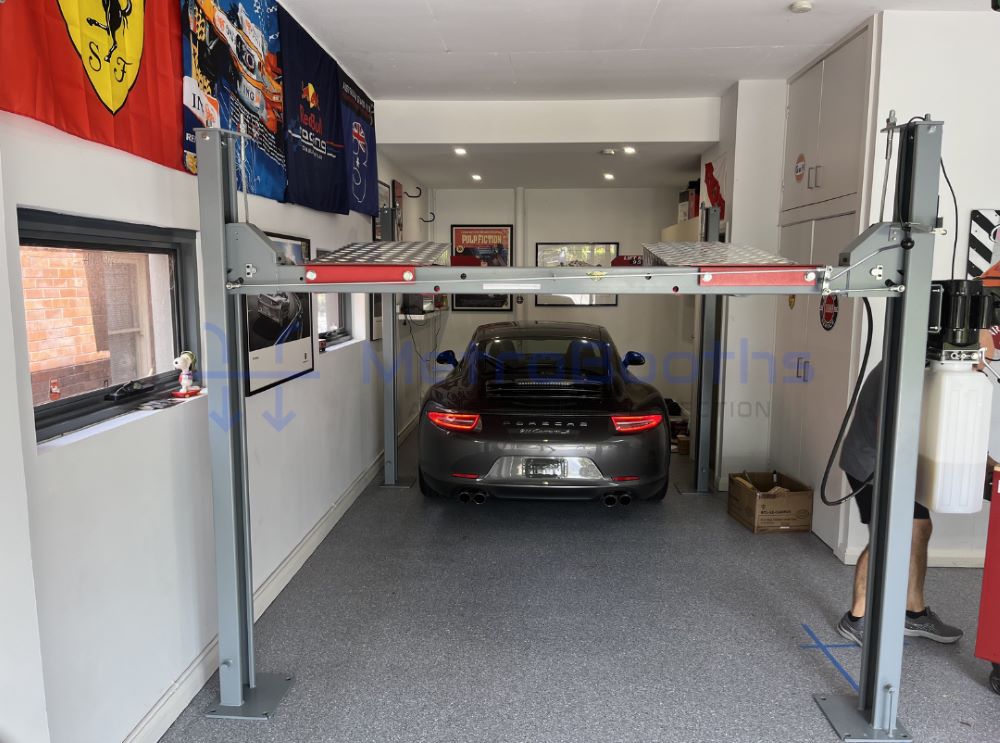

Conversely, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to operate efficiently with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding plays a significant role in your planning and installation process, ensuring optimal performance.

Always consult the manufacturer’s specifications for the hoist you are considering, as they will usually delineate the minimum concrete thickness required for safe operation. Following these guidelines is crucial for achieving optimal performance and extending the lifespan of your equipment.

Keep in mind that these recommendations serve as general guidelines. Your specific needs may vary depending on the layout of your garage and the types of vehicles you intend to lift, so tailor your approach accordingly.

Grasping the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as critical as its thickness when it comes to a successful installation. Stronger concrete can often be utilized at a thinner depth while still providing adequate support for heavy loads, which is particularly relevant for a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, ensuring a robust foundation.

Incorporating reinforcement techniques is essential for significantly enhancing the durability and strength of your concrete. The addition of steel mesh or rebar can greatly improve the overall integrity of your concrete floor. Consequently, this could allow you to use a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is vital for budget-conscious homeowners looking to balance quality and affordability.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thus enhancing the longevity and durability of your installation.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper upkeep of the floor, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment in this critical equipment.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Moreover, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during use, preventing any potential hazards.

For new concrete pours, it is essential to utilize steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days, ensuring it achieves the necessary strength. Additionally, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete to prevent any structural issues. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide guidance.

Essential Ongoing Maintenance for Your Car Hoist Post-Installation

Once your car hoist is installed, it’s critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality of your hoist and overall safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, thus extending its lifespan and maintaining safety.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, maintaining the integrity of your installation.

Consider applying a sealant to the concrete to protect against stains and moisture, which can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for homeowners.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity and guidance to help you make informed decisions.

What is the Minimum Concrete Thickness Required for a Two-Post Lift Installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, guaranteeing optimal performance.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it Safe to Install a Car Hoist on a Concrete Floor That is Less Than 100mm Thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation and peace of mind.

What Slab Thickness is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, taking into account the specific demands of your operations.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilized with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety and compliance.

What Factors Should be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and efficiency during operation.
